High Performance Abrasive Cut-Off Machines

BRAUN developed its dry abrasive cutting process for high-performance cut-off machines in 1965, providing a new innovative cutting technology for a wide range of industrial applications.  BRAUN continues to develop and deliver powerful and flexible state-of-the-art abrasive cutting solutions for the modern metals industry today.


BRAUN offers the following Model TS Series of machines, with cutting wheel diameters ranging from 500 mm (20") to 2050 mm (81"), which are driven by variable speed motors with up to 680 kW (912 hp) of cutting power.



  • Chop-stroke cutting (for single bars, tubes, and profiles, and for narrow layers)

  • Traverse cutting (for wide layers, slabs, plates, and sheets)

  • Rotary cutting (for larger diameter pipes and tubes)

  • Index cutting (for workpieces with very large cross sections)

Back to products and solutions
Previous product
Next product

Solutions for Rolling Mills

Long product rolling mills are among the most significant applications for high performance BRAUN abrasive cut-off machines.  BRAUN provides individually optimized abrasive cutting systems for SBQ and other products and processes where precise, accurate, un-burned and essentially burr-free cuts are essential.

Do you have questions about our product or want to place an order?
Contact us - our competent staff will be pleased to advise you!


Ansprechpartner

BRAUN-Trennschleifmaschine in Aktion (Trennen von Stablagen im Fahrschnitt)

BRAUN delivers a wide range of different, intelligently tailored cutting solutions for hot, warm, and cold cutting of tubular and long products including bars, channels, profiles, angles, flats, and assymetric shapes. Cutting of single bars or layer cutting of multiple bars can be integrated into the process at various locations, such as the roll stand, conveyor, and the cooling bed exit.

Individual Cutting Solution Examples (9)

Application Example

Model TS 16 W chop-stroke abrasive cut-off machine (horizontal rocker) in a blooming mill

Application Example

Model TS 16 W chop-stroke abrasive cut-off machine (horizontal rocker) for hot cutting of large cross-section bars

Application Example

Model TS 16 L chop-stroke abrasive cutting (with linear guided cutting head) for hot cutting of railroad rails.

Application Example

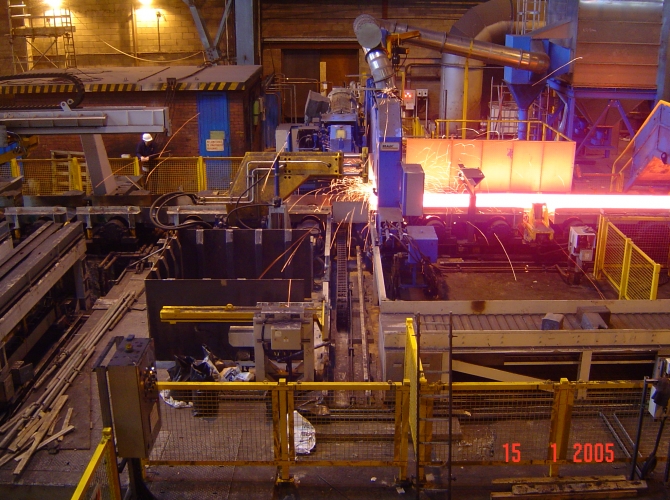

Model TS 16 F for warm layer abrasive cutting at the cooling bed exit

Application Example

Model TS 16 F for traverse abrasive cutting (with bar length stops and related equipment)

Application Example

Model TS 12 F for warm abrasive layer cutting at the finishing mill

Application Example

Model TS 12 F for warm layer cutting (retrofit into an existing rolling operation to augment/replace the cold shear)

Application Example

Model TS 12 FP gantry-type abrasive cut-off machine for wide layer cutting

Application Example

Model TS 12 FP gantry-type abrasive cut-off machine for cutting wide layers (with length stops and related workpiece postioning and clamping equipment)
